RV Series – Oil less Rotary Vane Type Vacuum Pump
PHOTOS
RV-10V

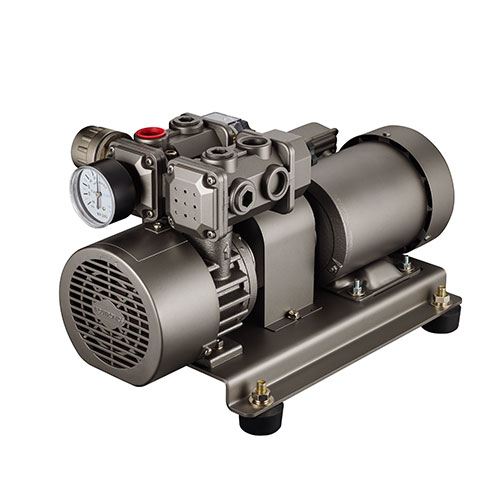

RV-16, 25V, 40V
RVX-25
RVX-40
| Model | RV-10V | RV-16V | RV-25V | RV-40V | RVX-25 | RVX-40 | |
| Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. Air Flow | ℓ/min | 100/120 | 230/280 | 400/480 | 570/680 | 400/480 | 570/680 |
| Con. Vacuum | mmHg | -600 | -450 | -450 | -450 | -450 | -450 |
| kPa | -80 | -60 | -60 | -60 | -60 | -60 | |
| Max. Vacuum | mmHg | -720 | -650 | -650 | -650 | - | - |
| kPa | -96.0 | -86.6 | -86.6 | -86.6 | - | - | |
| Motor Pole | Pole | 4 | 4 | 4 | 4 | 4 | 4 |
| Motor Phase | φ | 1 | 3 | 3 | 3 | 3 | 3 |
| Motor Voltage | Volt | 110/220 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Motor Output | Watt | 250 | 400 | 750 | 1500 | 1500 | 2200 |
| Noise Level | dB | - | 67/68 | 69/70 | 75/76 | - | - |
| Ambient Temp. | ℃ | 7~40 | 7~40 | 7~40 | 7~40 | 7~40 | 7~40 |
| Net Weight | Kg | 15 | 22 | 26 | 37 | 53 | 69 |
| Dimensions | Size | ||||||
